Bluetti to Puerto Rico - AT1

Bluetti to Puerto Rico - AT1

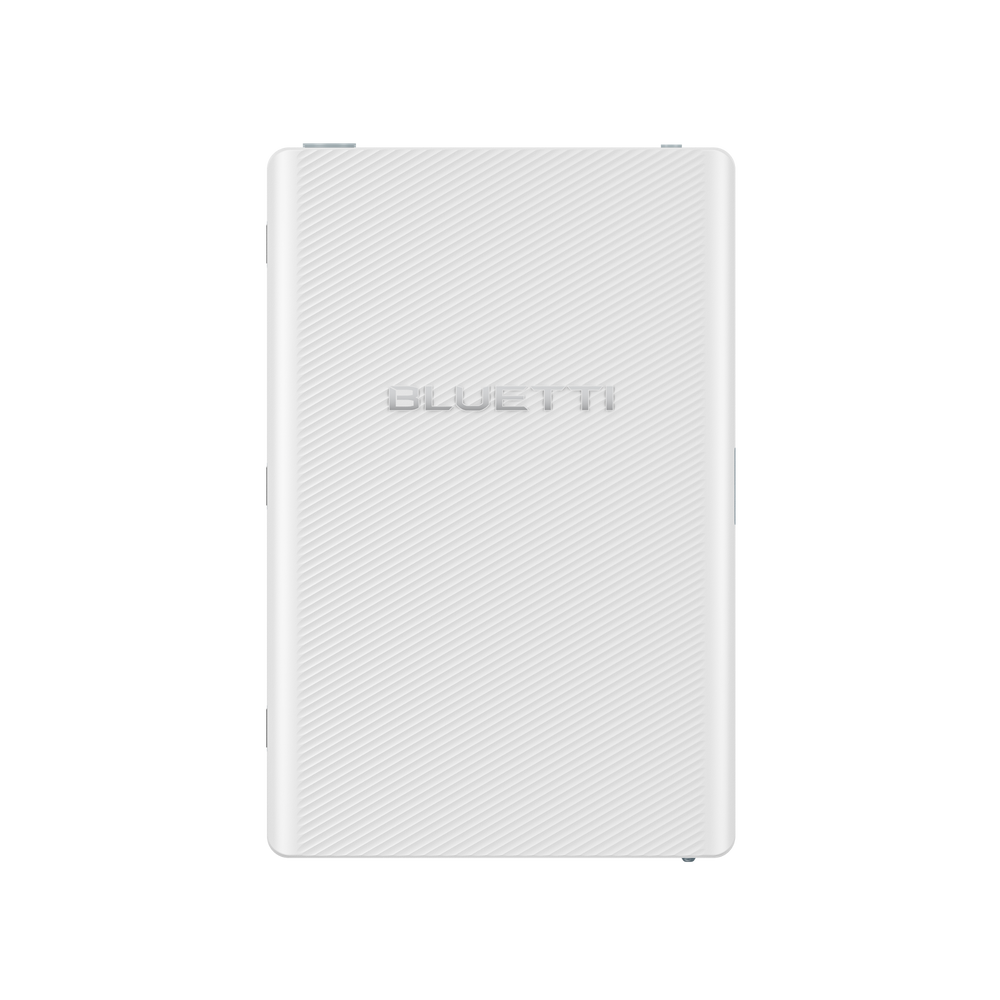

BLUETTI AT1 Smart Distribution Panel is basically BLUETTI’s smart home power control panel for whole-home backup systems. It works with systems like the Apex 300 and EnergyPro setups to automatically manage power between:

Grid power
Solar panels / microinverters
Generator input
BLUETTI battery systems

Key Features:

• Automatic transfer switch (switches to battery during outages)
• Whole-home or partial-home backup
• Smart energy management through the BLUETTI app
• Peak shaving / time-of-use energy control
• AC-coupled solar support
• Generator integration

Specifications:

Operating Temperature: -4°F to 122°F

Communication:
General: Bluetooth/Wi-Fi/Ethernet/4G;
EV: RS485

Protection Grade: NEMA 3R

Warranty: 10 years

Dimensions: 21.7 × 6.4 × 31.5 in

Net Weight:56.44 lbs

Compatibility: EnergyPro 6K/EnergyPro 13K/Apex 300

Electrical: Coupling AC-Coupling

Split Phase: L1/L2/N/G

Current Rating: 200 A

Rated Voltage: 120 V/240 V

Rated Frequency: 60 Hz

UPS Time: ＜20ms

Grid/Backup Current: 160 A Continuous (200 A Max.)

ESS Current: 2 × 80 A Continuous (2 × 100 A Max.)

Generator Current: 64 A Continuous (80 A Max.)

Solar Current (Microinverters): 64 A Continuous (80 A Max.)

Smart-Load Current: 64 A Continuous (80 A Max.)

What's in the Box:

1 x AT1 Smart Distribution Panel

1 x Ethernet cable (10m / 32.8 ft)

4 x Expansion bolts

4 x Phillips hex washer self-tapping screws

1 x User manual

1 x Warranty card

1 x QC certificate
